MRF24G04B

发布日期:2016-11-18 11:30 浏览次数：

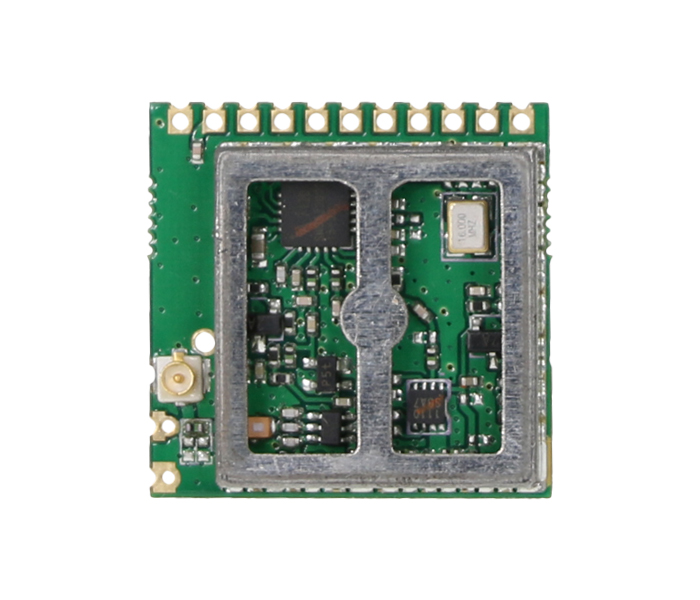

 A7130模块 带天线座

 功率19

Item	Specification	Remark
Supply voltage	3.3V+/‐0.1(V)
Current consumption	4uA @Sleep mode. 0.3mA @Idle mode. 2.7mA @Stand‐by Mode. 12.5mA @PLL Mode. 118mA @Tx power = 17dBm 31.3mA @Rx mode	typical
Frequency	2400 – 2483.5 MHz	ISM band
Transmit output power	17-19dBm @ room temperature	Typical
Rx sensitivity	‐89 dBm @ 4M mode, Dev =1MHz.	Typical, BER≦1E‐3,
Modulation	2.4GHz FSK/GFSK
Interface	11 pin 2.0mm header
PCB Dimension	23.11(L) x 21.45(W) x 3.8(H) mm3 without PCB antenna
Operating temperature	‐40℃ ~ 85℃ (Depend on crystal Spec.,example: Fork type_‐10℃ ~ 60℃)

DB
